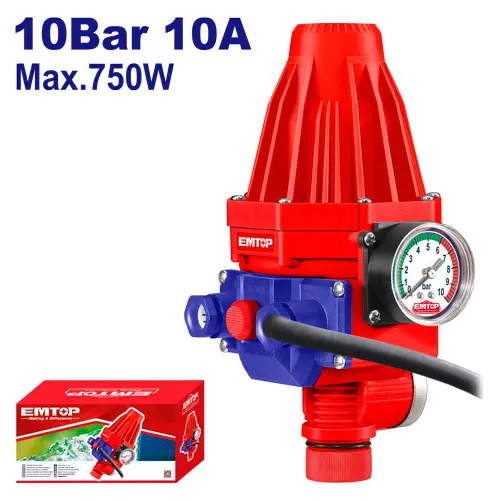

AUTOMATIC WATER PUMP PRESSURE CONTROLLER WITH PRESSURE GAUGE, 110–120 V, 50/60 HZ, MAX POWER 750 W, 10 BAR, 10 A, IP65 PROTECTION, 0.5 M CABLE EMTOP

TECHNICAL DATA SHEET

Product name:

Automatic Pressure Control for Water Pump with Pressure Gauge

Category:

Water pumps / Pressure controls / Plumbing accessories

Description:

Automatic pressure control with built-in pressure gauge, designed to automate switching water pumps on and off according to system demand. Lets you monitor pressure in real time, maintains constant pressure and protects the pump against dry running. Ideal for household, commercial and irrigation systems.

Applications / Recommended use:

• Water pumping systems

• Household plumbing networks

• Irrigation systems

• Water pressurization

• Residential and commercial installations

Material / Composition:

• High-strength plastic housing

• Built-in analog pressure gauge

• Electrical and electronic internal components

• Reinforced plumbing connections

Technical specifications:

• Rated voltage: 110–120 V

• Frequency: 50/60 Hz

• Start pressure: 1.5 bar

• Maximum allowed power: 750 W

• Maximum current: 10 A

• Maximum working pressure: 10 bar

• Pipe connection diameter: 1” x 1”

• Cable length: 0.5 m

• Protection rating: IP65

• Control type: Automatic

• Pressure indicator: Built-in pressure gauge

• Protection: Against dry running

Color / Finish:

Red with blue details

Advantages / Benefits:

• Built-in pressure gauge for visual pressure monitoring

• Automates pump operation

• Maintains constant system pressure

• Protects the pump and extends its service life

• High resistance to dust and water (IP65)

• Easy installation

Package contents:

• 1 automatic pressure control for water pump with pressure gauge

• 0.5 m power cord

• User manual

• Color box packaging

Conditions of use and storage:

• Install according to the flow direction

• Check voltage before connecting

• Do not operate without water supply

• Store in a dry, protected place
