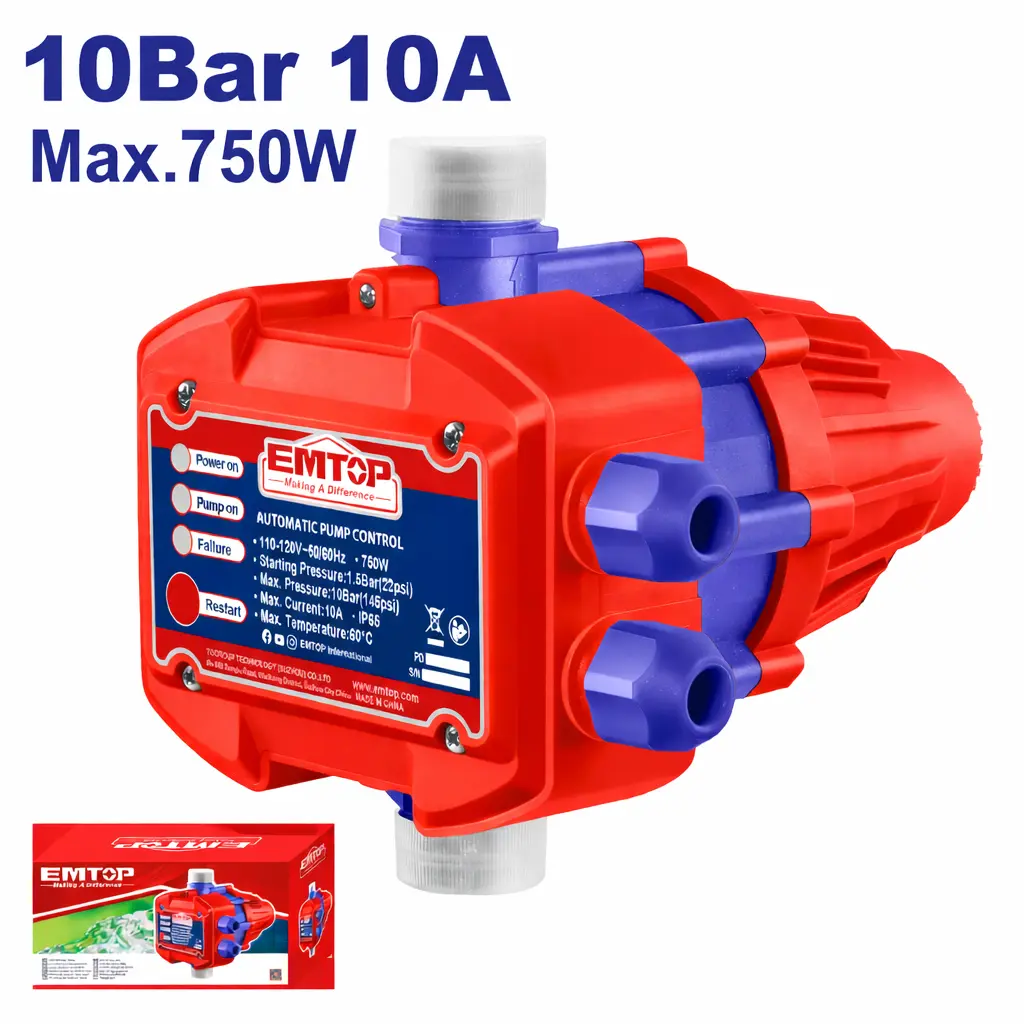

AUTOMATIC WATER PUMP PRESSURE CONTROLLER, 110–120 V, 50/60 HZ, MAX POWER 750 W, 10 BAR, 10 A, IP65 PROTECTION EMTOP
TECHNICAL DATA SHEET
Product name:
Automatic Pressure Control for Water Pump
Category:
Water pumps / Plumbing accessories
Description:
Automatic pressure control designed to switch water pumps on and off automatically according to system demand. Maintains constant pressure in the plumbing network and protects the pump against dry running, making it ideal for household, commercial and irrigation systems.
Applications / Recommended use:
Water pumping systems
Household plumbing networks
Irrigation systems
Residential and commercial installations
Water pressurization
Material / Composition:
High-strength plastic housing
Electrical and electronic internal components
Technical specifications:
Rated voltage: 110–120 V
Frequency: 50/60 Hz
Start pressure: 1.5 bar
Maximum allowed power: 750 W
Maximum current: 10 A
Maximum working pressure: 10 bar
Pipe connection diameter: 1” x 1”
Protection rating: IP65
Control type: Automatic
Color / Finish:
Red and blue
Advantages / Benefits:
Automates pump operation
Maintains constant system pressure
Dry-run protection
High resistance to dust and water (IP65)
Easy installation and maintenance
Package contents:
1 automatic pressure control for water pump
User manual
Color box packaging
Conditions of use and storage:
Install in a suitable, ventilated position
Check connections and voltage before switching on
Do not install without water flow
Store in a dry, protected place
