BRASS BALL VALVE PN40 1/2 CHROME
SKU: HT70007
TECHNICAL DATA SHEET

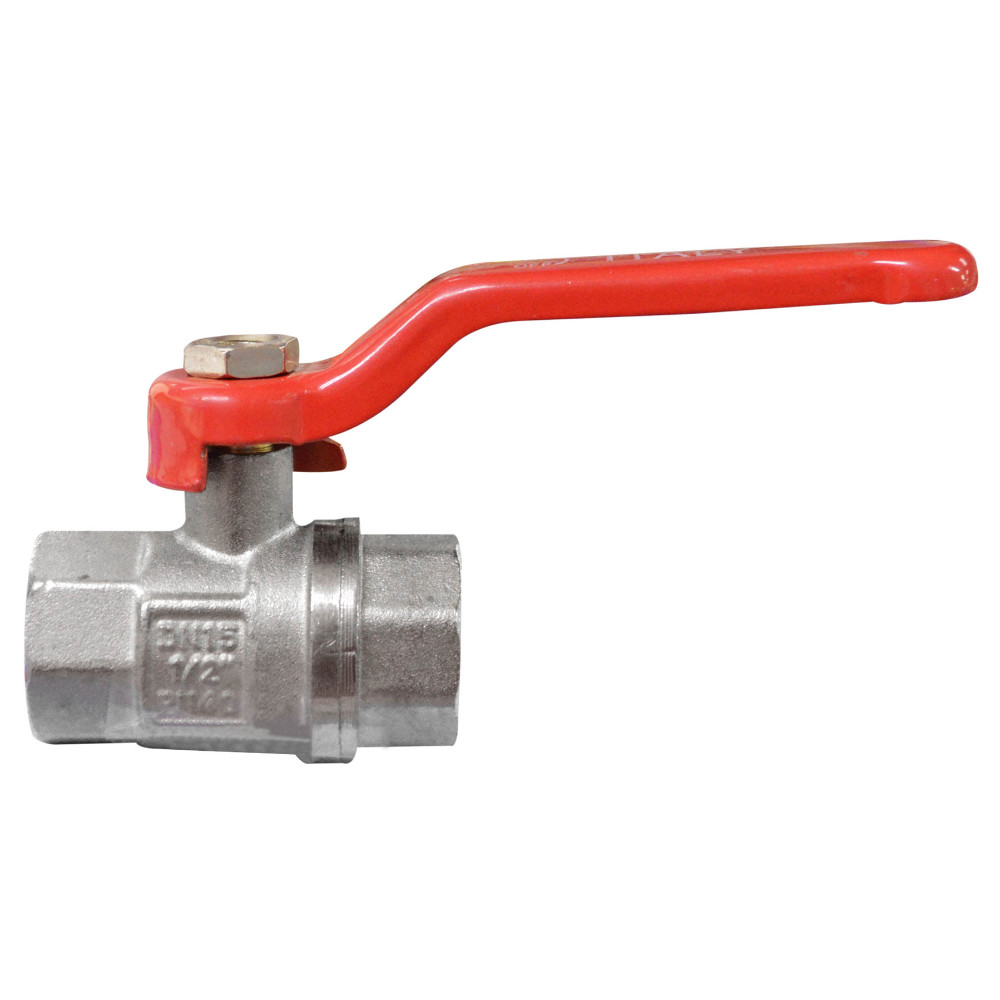

UDUKE PN40 1/2” CHROME BALL VALVE
General Description
The UDUKE PN40 1/2” chrome ball valve is a flow control device designed for quick opening and closing in hydraulic, pneumatic and fluid conveying systems. Its bored ball mechanism ensures a watertight seal, minimal pressure loss and high durability, even in high-pressure applications.
Applications
Plumbing installations
Drinking water networks
Industrial systems
Compressed air
Non-corrosive fluids
Technical Features
High-strength chrome-plated metal body
1/4-turn shut-off system
Polished internal ball for less friction
Coated ergonomic handle
High resistance to pressure and temperature
Technical Specifications
| Parameter | Specification |
| Type | Ball valve |
| Nominal diameter | 1/2” |
| Nominal pressure | PN40 |
| Body material | Chrome-plated brass |
| Ball material | Chrome-plated brass |
| Connection type | Female thread |
| Operation | Manual |
| Turn | 90° (¼ turn) |
| Brand | UDUKE |
Chart base table.
| Pressure (bar) | Sealing level |
| 10 | 98 % |
| 20 | 97 % |
| 25 | 96 % |
| 32 | 95 % |
| 40 | 94 % |
