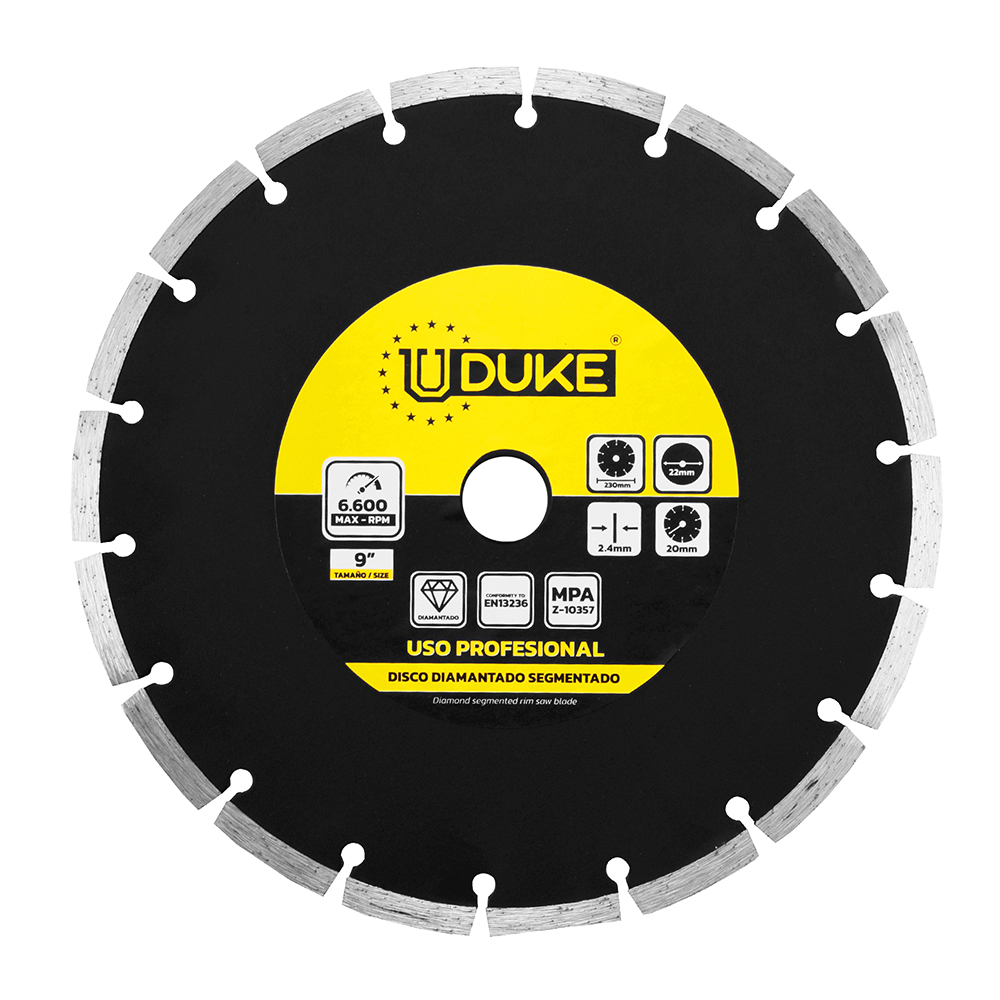

DIAMOND SEGMENTED RIM SAW BLADE UDUKE 9"

9-inch (230 mm) segmented diamond blade for professional use, with a black core and segments with cooling slots, for larger cutting machines.

Its label states a maximum of 6,600 RPM, a 22 mm bore and compliance with the EN 13236 standard.

Specifications

• Diameter: 9" (230 mm)
• Rim type: Segmented
• Maximum RPM: 6,600
• Bore: 22 mm
• Thickness: 2.4 mm
• Segment height: 20 mm
• Standard: EN 13236
• Factory model: DDUG-230

Includes

• 1 diamond blade

Uses

• Cutting concrete, brick, block and stone on site or in the workshop
• Cutting chases and making cuts in building materials

Tips

• Make sure the maximum RPM of the machine does not exceed the one printed on the blade.
• Follow the direction of rotation shown by the arrows on the blade.
• Wear goggles, hearing protection, a dust mask and gloves, as shown by the pictograms on the blade.
• Do not use the blade if it is cracked, warped or missing segments.
