DIAMOND CUTTING BLADE SEGMENTED 7" UDUKE

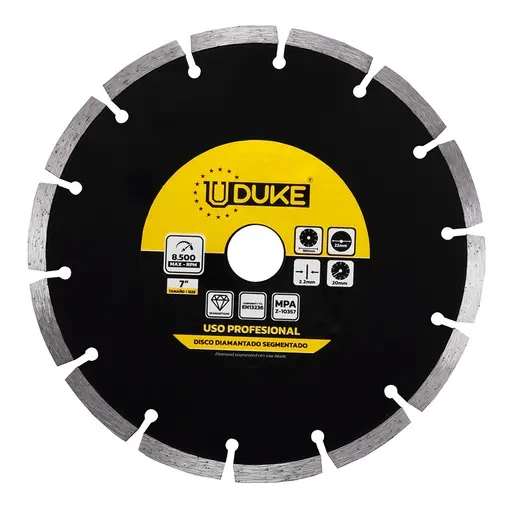

Segmented diamond blade, 7 inches (180 mm), for professional use, with a black core and segments with cooling slots.

Its label states 8,500 maximum RPM, a 22 mm arbor hole and compliance with the EN 13236 standard.

Specifications

• Diameter: 7" (180 mm)
• Rim type: Segmented
• Maximum RPM: 8,500
• Arbor hole: 22 mm
• Thickness: 2.2 mm
• Segment height: 20 mm
• Standard: EN 13236
• Factory model: DDUG-180

Includes

• 1 diamond blade

Uses

• Cutting concrete, brick, block and stone on site or in the workshop
• Cutting grooves and making cuts in construction materials

Tips

• Check that the machine's maximum RPM does not exceed the one printed on the blade.
• Follow the direction of rotation shown by the arrows on the blade.
• Wear safety glasses, hearing protection, a dust mask and gloves, as the pictograms on the blade indicate.
• Do not use the blade if it is cracked, warped or missing segments.
