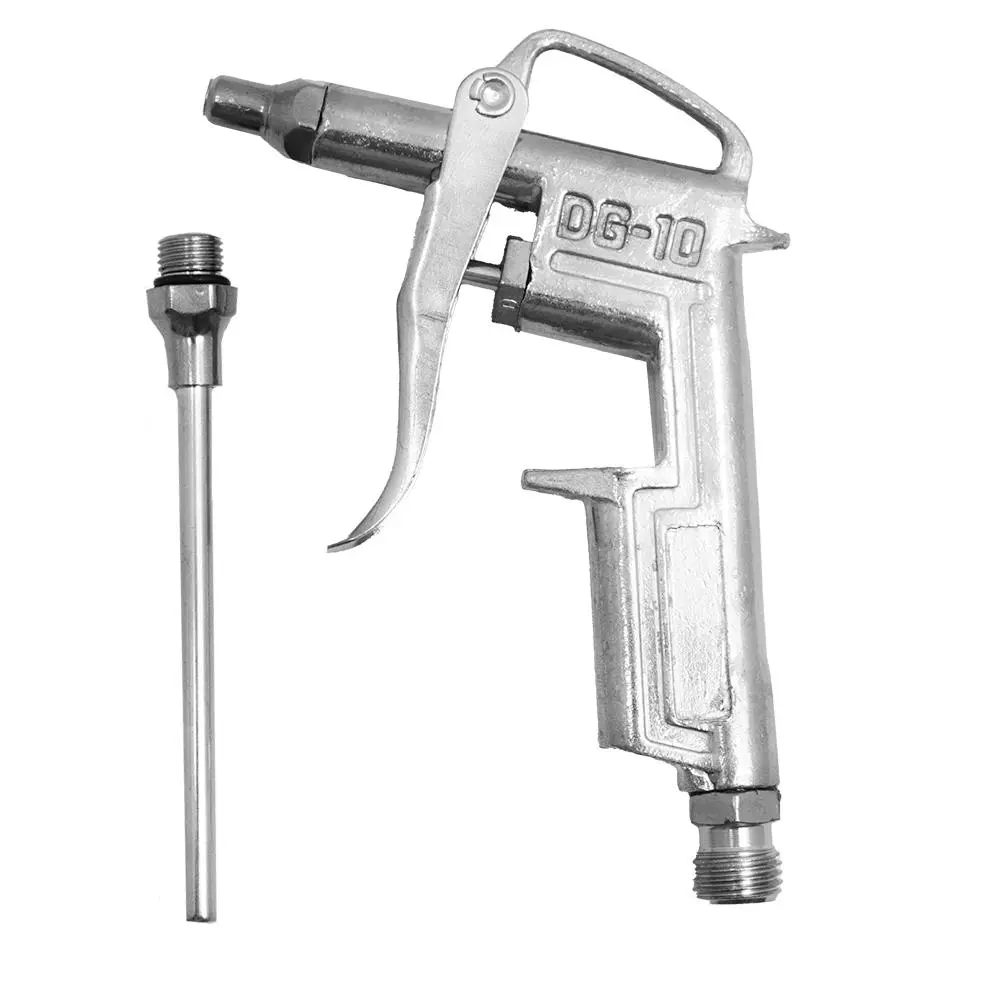

PISTOLA DE AIRE DG-10

DG-10 model air blow gun with a metal body, for cleaning parts, machines and work surfaces with compressed air. It connects to the compressor through the threaded inlet at the base of the handle.

It comes with a threaded extension nozzle to reach corners, slots and holes where the short nozzle does not fit. It is operated with a front lever and has a hook for hanging it.

Specifications

• Model: DG-10
• Maximum working pressure: 1.0 MPa (10.2 kgf/cm²)
• Pressure resistance: 1.5 MPa
• Body: Silver metal alloy
• Air inlet: Male thread at the base of the handle
• Nozzles: Short and extension, threaded
• Operation: Front lever

Includes

• DG-10 blow gun
• Threaded extension nozzle

Uses

• Blowing dust, chips and filings off parts and machines
• Cleaning slots, holes and corners with the extension nozzle
• Drying parts after washing in mechanics and metalworking shops

Tips

• Wear safety glasses: the air throws particles at high speed.
• Never point the blast at skin, eyes, ears or another person, and do not use it to clean clothes you are wearing.
• Do not exceed the maximum working pressure; regulate the compressor output.
• Put Teflon tape on the inlet thread to prevent leaks.
• Drain water from the compressor often so moisture does not come out of the nozzle.
