DIGITAL CLAMP METTER 600 V UDUKE

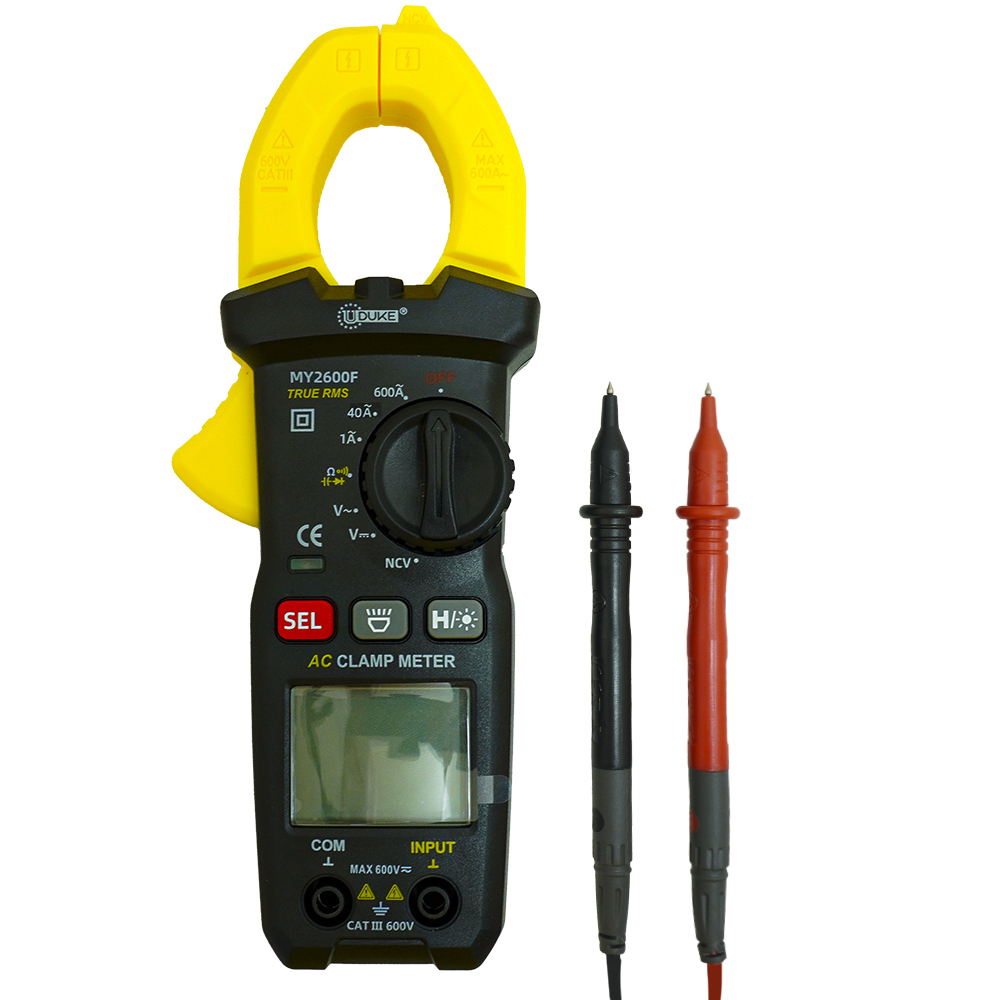

Digital AC clamp meter with True RMS technology, factory reference MY2600F. It clamps around the conductor to measure current without stripping or cutting the wire, and with the included test leads it measures voltage, resistance and continuity.

Its selector has current ranges of 600 A, 40 A and 1 A, AC and DC voltage, continuity, diode and capacitance, and non-contact voltage detection (NCV). It has a flashlight and a data hold button with backlight.

Specifications

• Manufacturer reference: MY2600F
• Measurement type: True RMS
• AC current (clamp): up to 600 A
• AC current ranges: 600 A / 40 A / 1 A
• Maximum voltage: 600 V
• Measurement category: CAT III 600 V
• Selector functions: AC voltage, DC voltage, resistance with continuity, diode, capacitance, NCV
• Buttons: SEL, flashlight, data hold (HOLD) and backlight
• Display: Digital LCD
• Certification: CE mark

Includes

• Clamp meter
• Red and black test leads

Uses

• Measuring current in motors, panels and circuits without interrupting them
• Checking AC and DC voltage
• Testing continuity
• Detecting voltage without contact

Tips

• To measure current, clamp around a single conductor; if you clamp line and neutral together, the reading is zero.
• Do not exceed the 600 V or the 600 A marked on the meter.
• Remove the test leads when measuring with the clamp.
• Set the selector to OFF when you finish.
