MULTIMETRO ELECTRONICO HT108

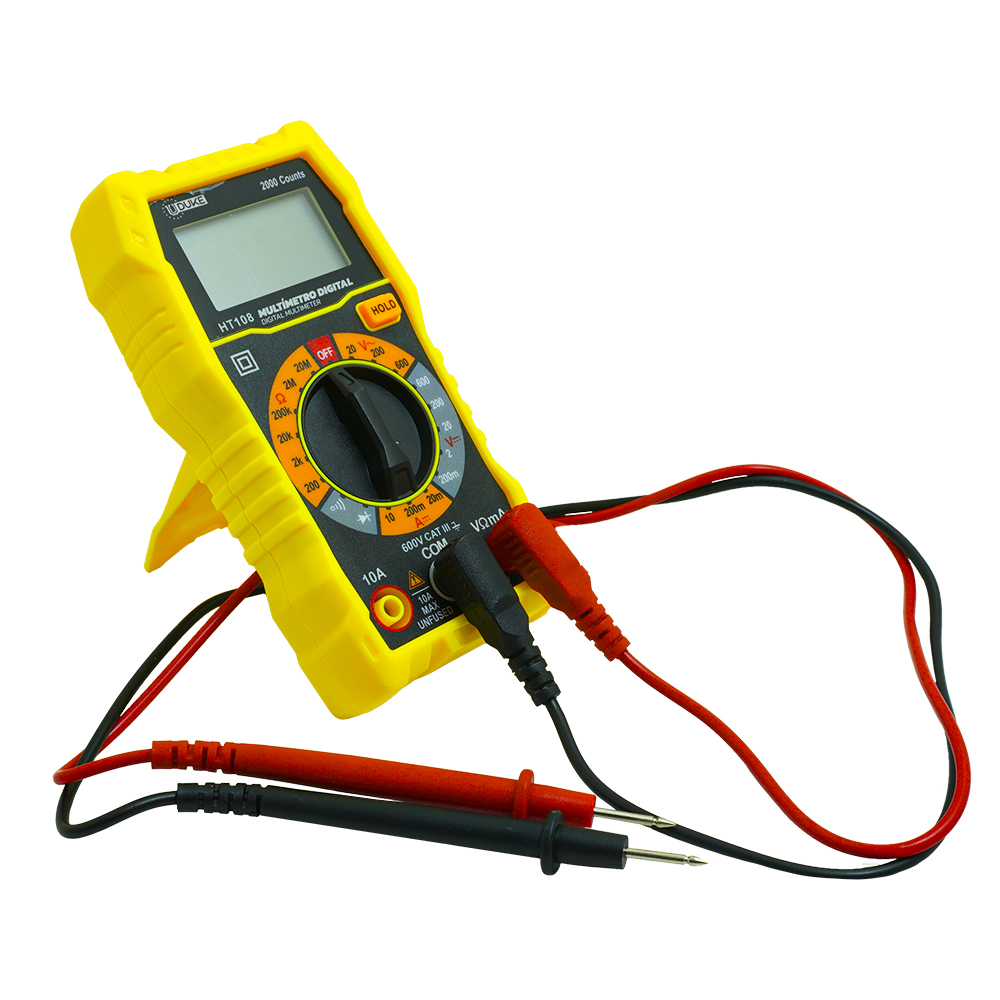

Pocket digital multimeter with a 2000-count LCD display, rotary selector and red and black test leads included. It measures AC and DC voltage, DC current and resistance, and has continuity and diode tests.

Its yellow case with rubber protection absorbs impacts, it has a folding stand to set it upright on the bench and a HOLD button to freeze the reading. The panel shows 600 V CAT III and double insulation.

Specifications

• Manufacturer reference: HT108
• Display: Digital LCD, 2000 counts
• Maximum voltage: 600 V
• Measurement category: CAT III 600 V
• Current input: 10 A (unfused)
• AC voltage ranges: 20 / 200 / 600 V
• DC voltage ranges: 200 mV / 2 / 20 / 200 / 600 V
• Resistance ranges: 200 Ω to 20 MΩ
• Functions: Continuity with buzzer, diode test, data hold (HOLD)
• Insulation: Double insulation

Includes

• Digital multimeter
• Red and black test leads

Uses

• Checking voltage at outlets, batteries and circuits
• Testing continuity of cables, fuses and switches
• Measuring component resistance
• Testing diodes

Tips

• Before measuring, select the function and a suitable range; if you do not know the value, start with the highest.
• Do not exceed the 600 V shown on the panel.
• To measure current, connect the leads to the matching input and disconnect the circuit before inserting the meter.
• Turn the meter OFF when finished and remove the leads.
